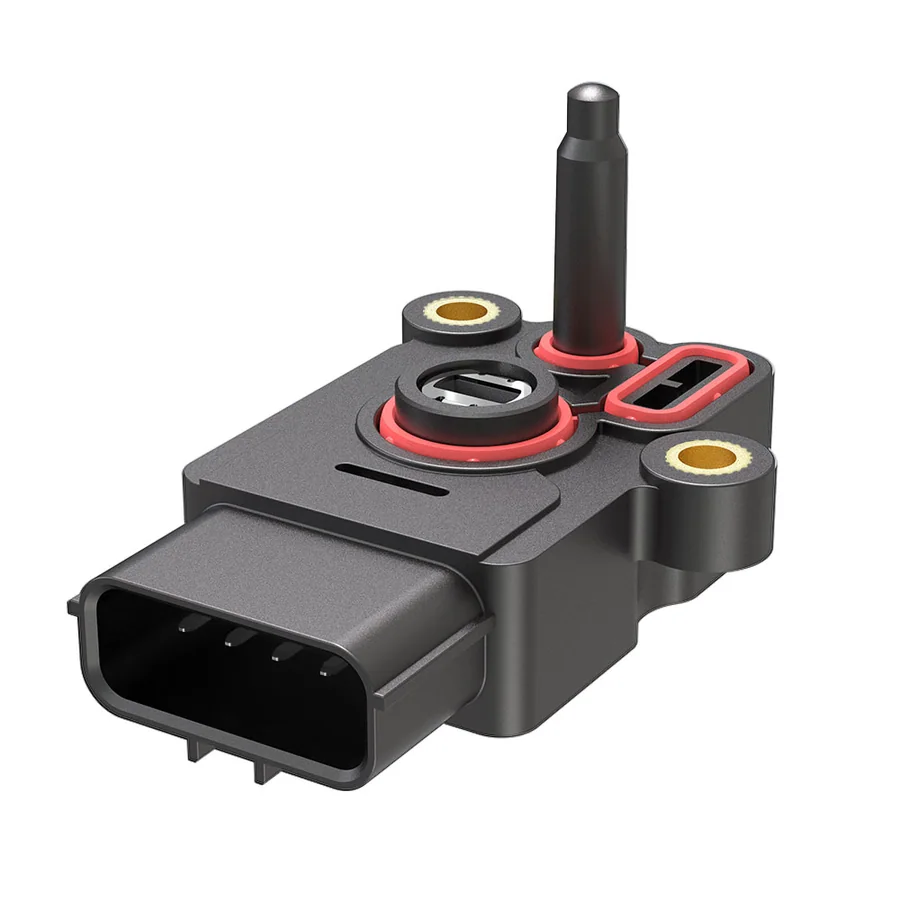

003Integrated TPS / MAP / IAT Sensor
Throttle position, manifold absolute pressure and intake air temperature sensing combined in one unit for engine intake and throttle applications.
- Functions
- TPS + MAP + IAT
- MAP range
- 10–115 kPa
- TPS resistance
- 5 kΩ ±20%
- Operating temperature
- −30 to +110 °C
Application fit
- Vehicle interfacesSensing function, installation, connector and project evaluation.
Application fit
- Vehicle interfacesSensing function, installation, connector and project evaluation.
Technical overview
Series & response information
| TPS total resistance | 5 kΩ ±20% |
|---|---|
| TPS maximum operating voltage | 5 VDC |
| TPS effective electrical angle | 105° |
| TPS linearity | ±2.0% |
| MAP pressure range | 10–115 kPa |
| MAP accuracy | ±1.5 kPa at 0–85 °C |
| MAP response / settling time | ≤1 ms / ≤10 ms |
| MAP output reference | 0.40 V at 10 kPa; 4.65 V at 115 kPa |
| IAT resistance | 2 kΩ ±3% |
| IAT B value, B25/85 | 3520 K ±2% |
Mechanical & integration information
| Operating / storage temperature | −30 to +110 °C / −40 to +120 °C |
|---|---|
| Mechanical durability | Up to 2 million cycles, as stated in the brochure |
| Sealing | IPX7 water resistance; IP6X dust resistance, as stated in the brochure |
Values are from the Cooka 003 series brochure, which identifies them as production-evaluation data. Request the applicable controlled drawing for mechanical travel, installation dimensions and terminal orientation.
Mechanical & electrical integration
| Installation envelope | The brochure lists 41 mm overall width and 56.2 mm overall height. Use the approved drawing for mounting and clearance. |
|---|---|
| Connector reference | Sumitomo 6189-1046 is recommended in the brochure; confirm the mating connector and orientation. |
| Signal labels | Vp: MAP output; Ts: temperature output; Vin: input voltage; Vtps: TPS output; GND: ground. Request the pin-view drawing before wiring. |
