Technical summary
Selected specifications, options and available reference drawings, compiled from the supplied SVR01 datasheet. Reference summary, 28 September 2026.
Download PDFProduct appearance and terminals vary by configuration.
COOKA / COMPONENT SERIES
COOKA / DOCUMENTED SERIES

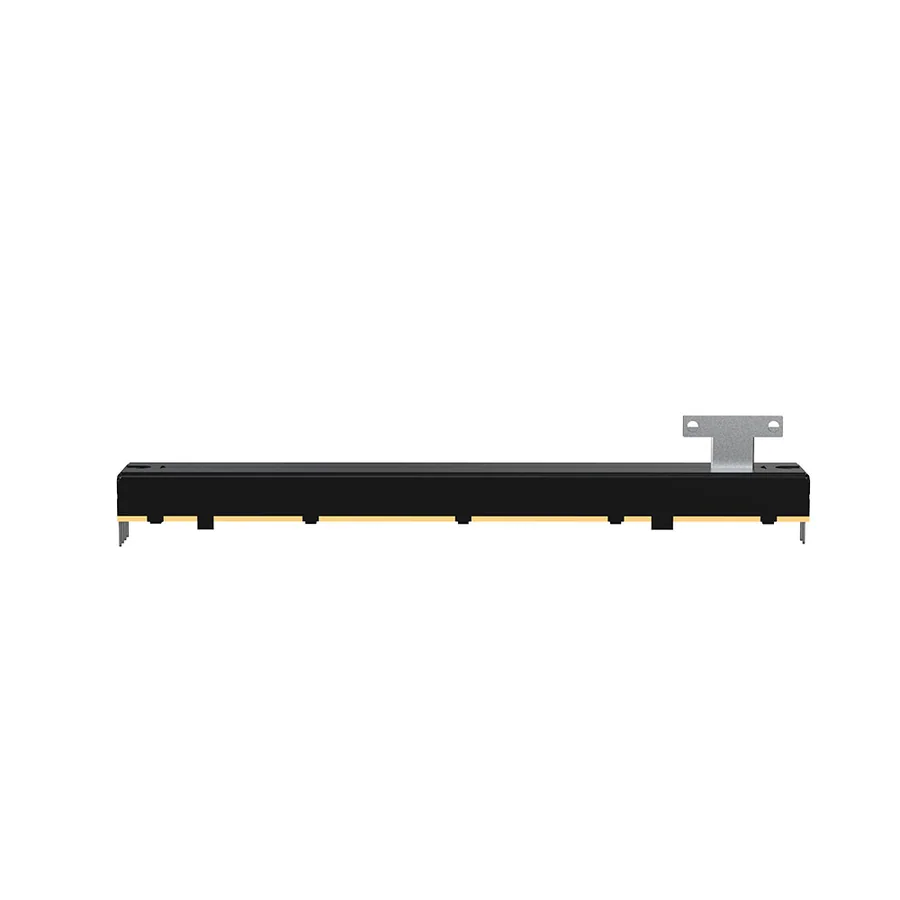

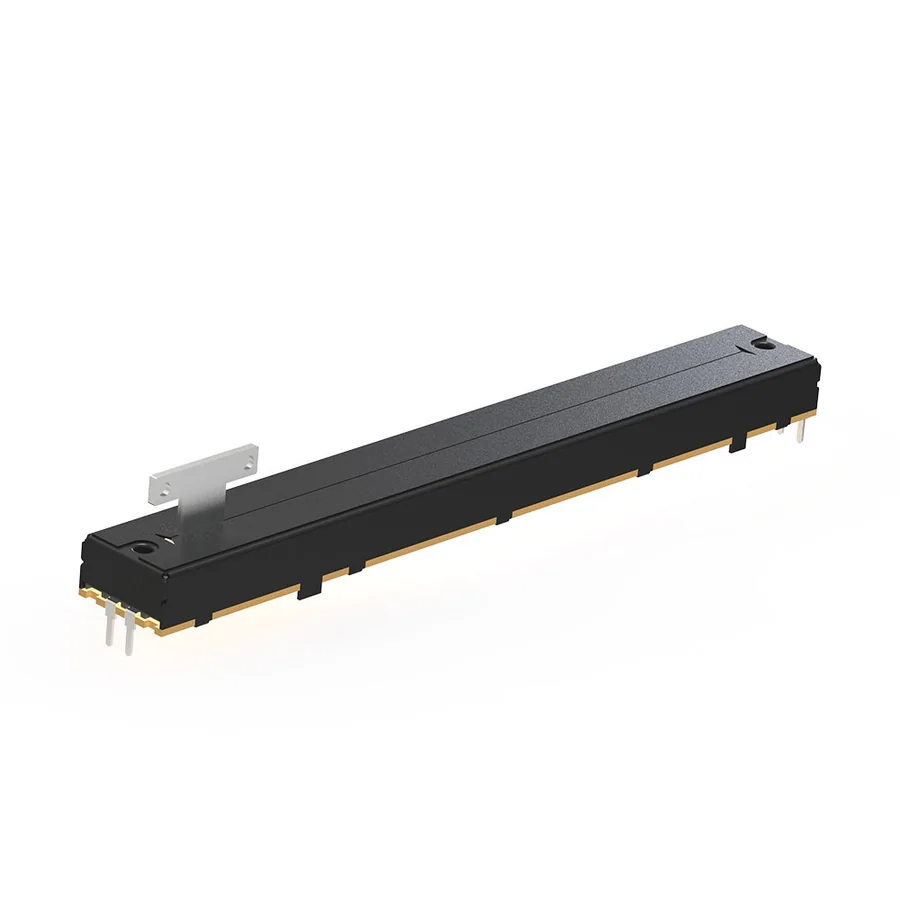

SVR01Long-Life Slide Potentiometer
A manual slide potentiometer in single or duplex configurations, with three travel lengths and selectable operating feel.
- Travel
- 45 / 60 / 100 mm
- Resistance
- 5 / 10 kΩ
- No-load life
- 1 million cycles
- Linearity
- ±3% max.
Application fit
- Audio & control surfacesCompare manual and motor-actuated faders for mixer and control-surface designs. Verify taper, travel, touch sensing and drive electronics for your project.
- Linear control interfacesThe slide series below are candidates for control panels and fader mechanisms. A machine requiring sealed long-stroke displacement sensing needs a separate review.
Application fit
- Audio & control surfacesCompare manual and motor-actuated faders for mixer and control-surface designs. Verify taper, travel, touch sensing and drive electronics for your project.
- Linear control interfacesThe slide series below are candidates for control panels and fader mechanisms. A machine requiring sealed long-stroke displacement sensing needs a separate review.
Technical data
Specifications
Electrical & response
| Standard resistance | 5 kΩ / 10 kΩ |
|---|---|
| Standard resistance tolerance | ±20% |
| Reference taper | Linear; other curve codes available |
| Linearity | ±3% maximum |
| End resistance | 10 Ω maximum |
| Noise (C.R.V.) | 100 mV maximum |
| Power rating | 0.25 W at 40 °C, derated to 0 W at 85 °C |
| Maximum input voltage | 250 VDC in the supplied specification |
| Track configuration options | Single or duplex. |
| Cover & feel options | With or without dust cover; light or heavy slide feel. |
| Curve & tolerance options | Curve codes blank 1B / A 15A / C 15C; resistance tolerance ±10% or ±20%. |
Mechanical, environment & options
| Mechanical travel | 45 mm / 60 mm / 100 mm |
|---|---|
| No-load operating life | 1,000,000 cycles |
| Life-test acceptance | Total resistance change ≤ ±20% |
| Operating temperature | −10 to +70 °C |
| Storage temperature | −20 to +85 °C |

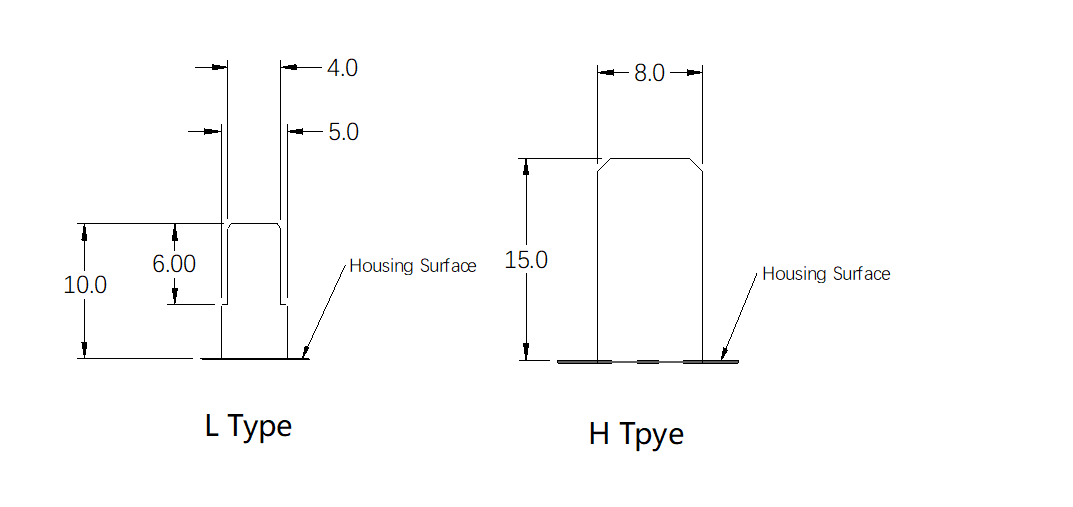

| Travel & lever options | 45 / 60 / 100 mm travel; T08, T10, L10 or H15 lever options. |
Electrical performance and taper must be matched to the selected configuration. Single-track products omit the holes numbered 4, 5 and 6 in the source drawing.
Options are not automatically interchangeable. Confirm the complete order code, drawing revision and performance requirements in the quotation.
Mechanical integration
Check the fit. Confirm the connection.
Connection review
Use the single or duplex circuit in the reference drawing. The single-track version omits positions 4, 5 and 6; confirm the connector and PCB footprint for the ordered part.
