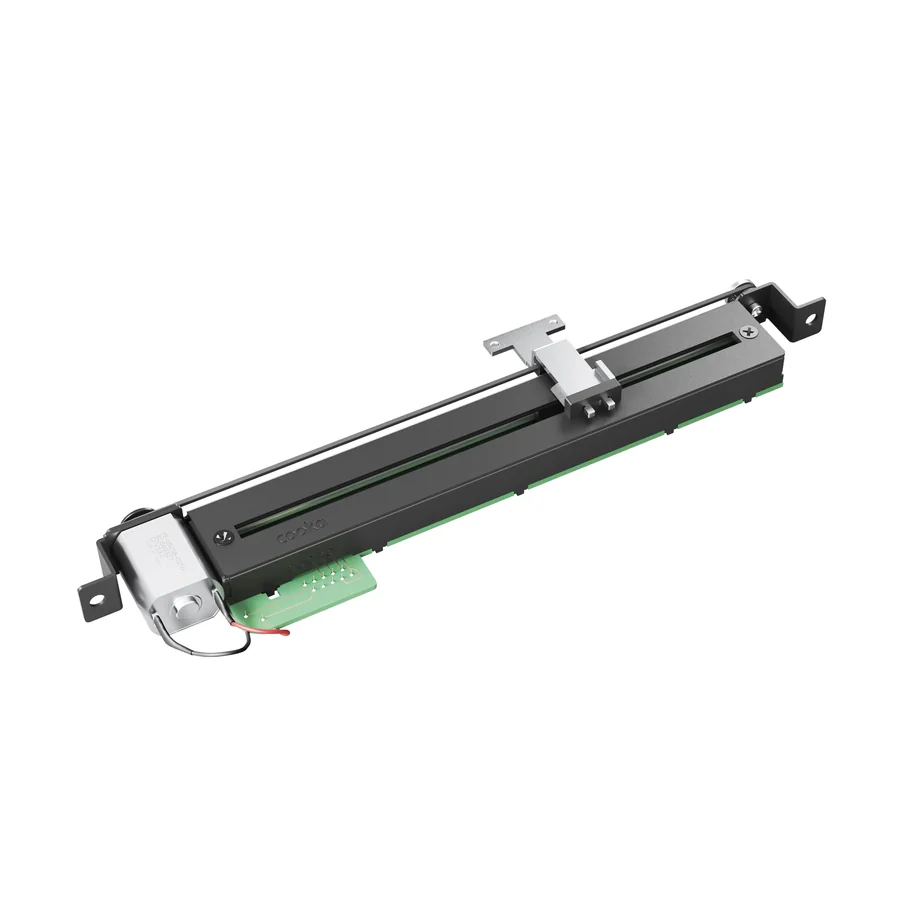

MSV05Motor Slide Potentiometer
A motor fader with configurable lever and connector formats, offered in 60 mm and 100 mm travel lengths.
- Travel
- 60 / 100 mm
- Resistance
- 5 / 10 kΩ
- No-load life
- 2 million cycles
- Linearity
- ±2% max.
Application fit
- Audio & control surfacesCompare manual and motor-actuated faders for mixer and control-surface designs. Verify taper, travel, touch sensing and drive electronics for your project.
- Linear control interfacesThe slide series below are candidates for control panels and fader mechanisms. A machine requiring sealed long-stroke displacement sensing needs a separate review.
Application fit
- Audio & control surfacesCompare manual and motor-actuated faders for mixer and control-surface designs. Verify taper, travel, touch sensing and drive electronics for your project.
- Linear control interfacesThe slide series below are candidates for control panels and fader mechanisms. A machine requiring sealed long-stroke displacement sensing needs a separate review.
Technical data
Specifications
Electrical & response
| Standard resistance | 5 kΩ / 10 kΩ |
|---|---|
| Standard resistance tolerance | ±20% |
| Resistance taper | Linear |
| Linearity | ±2% maximum |
| End resistance | 30 Ω maximum |
| Noise (C.R.V.) | 100 mV maximum |
| Element power rating | 0.25 W at 40 °C, derated to 0 W at 85 °C |
| Maximum element input voltage | 200 VDC; this is not a motor supply rating |
| Resistance tolerance options | A ±10% or B ±20%. Confirm the motor driver and wiring for the selected configuration. |
Mechanical, environment & options
| Mechanical travel | 60 mm / 100 mm |
|---|---|
| No-load operating life | 2,000,000 cycles; L order code is 1,000,000 cycles |
| Operating temperature | −10 to +70 °C |
| Storage temperature | −20 to +85 °C |

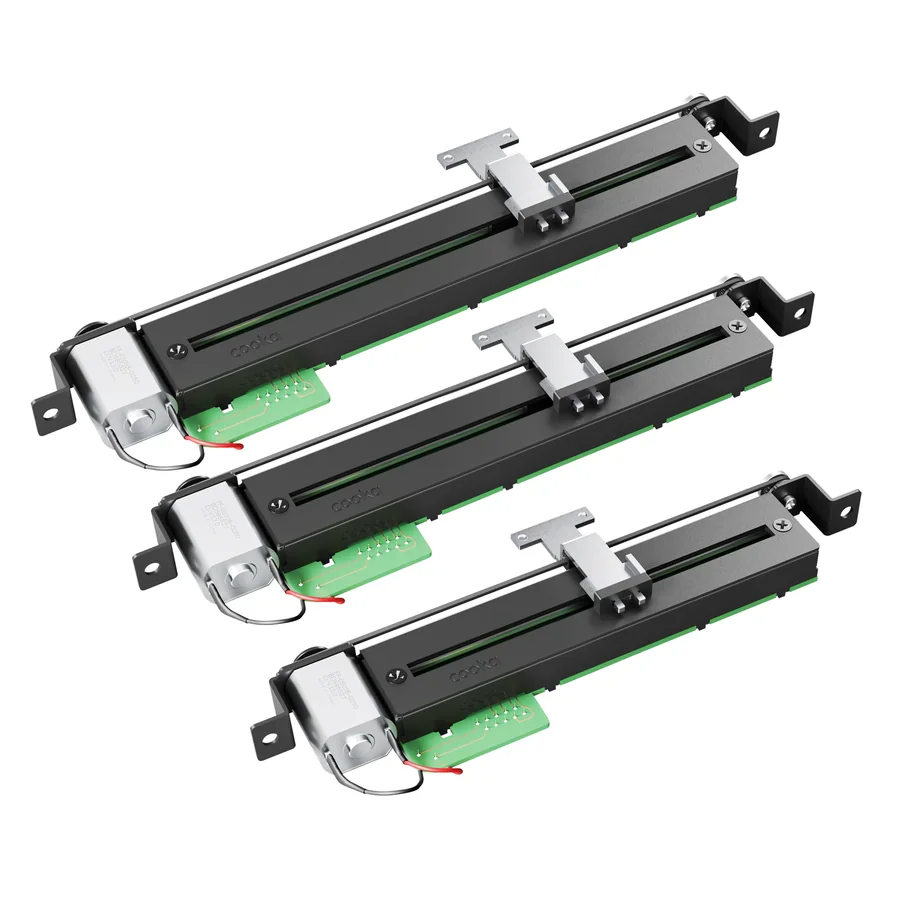

| Travel & lever options | 60 mm / 100 mm travel; T, TL and TA lever styles. |
| Connector options | Blank: FFC-1.0-10P; P: PH-7P. |
| Life code options | Blank: 2 million cycles; L: 1 million cycles. |
⁴ The 2 million-cycle value applies to the blank life code. The L configuration is rated at 1 million cycles. Element input voltage must not be used as the motor supply voltage.
Options are not automatically interchangeable. Confirm the complete order code, drawing revision and performance requirements in the quotation.
Mechanical integration
Check the fit. Confirm the connection.
| T type / 60 mm travel | Reference body length 120 mm; mounting centres 112.1 ±0.3 mm |
|---|---|
| T type / 60 mm travel | Body width 12.3 mm; drawing height 45.0 ±0.3 mm |
| Other constructions | 100 mm / TL / TA: request the matching controlled drawing |
Reference dimensions are taken from the T-type 60 mm drawing. A clean, approved drawing for the selected construction is available by request; do not apply this envelope to other variants.
Connection review
Connector choices are FFC-1.0-10P and PH-7P. Obtain the pinout matched to the travel, lever and connector code; motor supply and current are not specified in the series datasheet.
