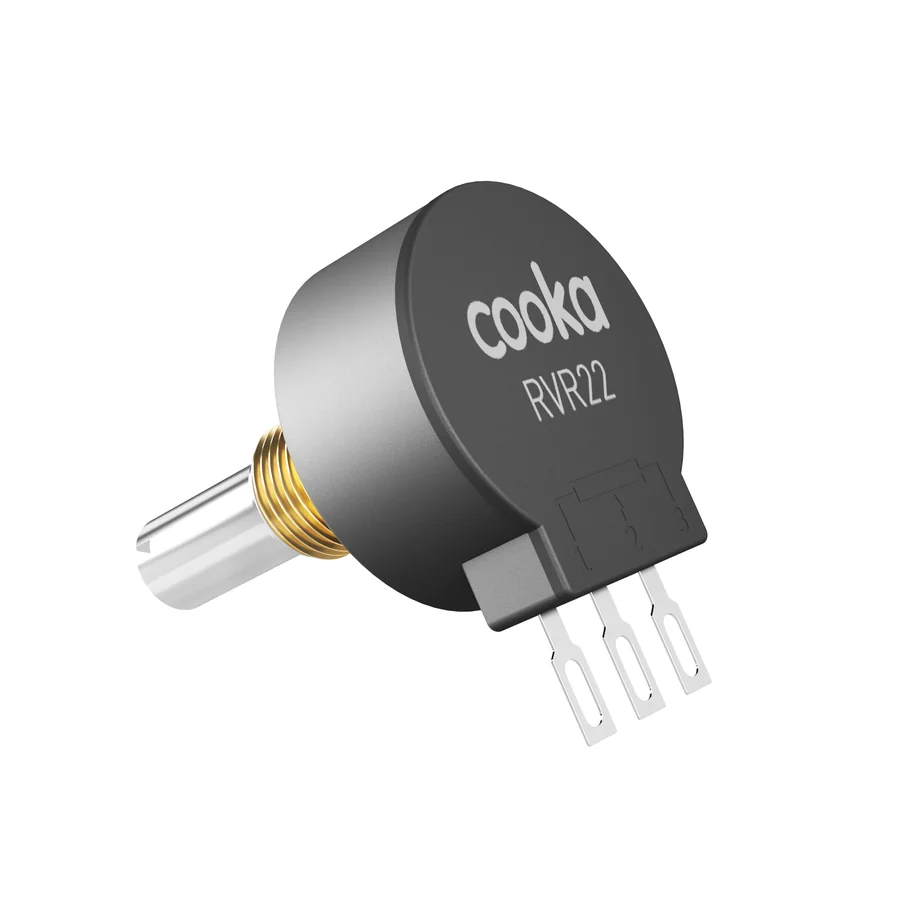

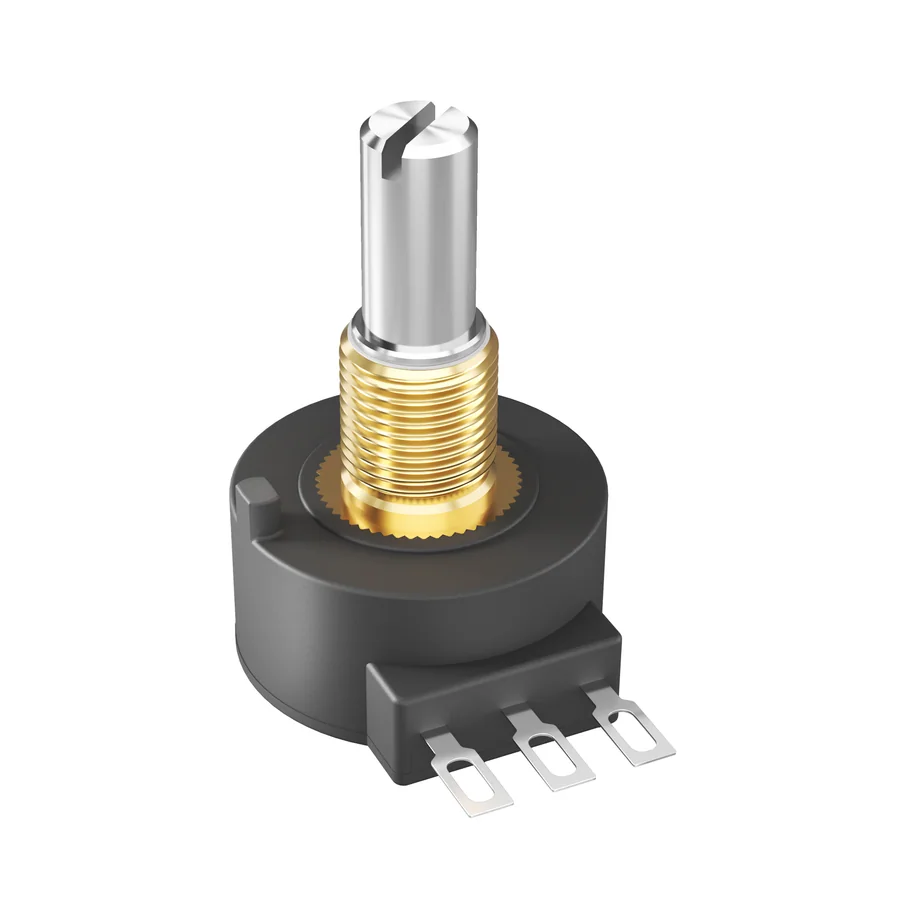

RVR2222 mm Rotary Potentiometer
A carbon-element rotary series with selectable shaft materials, electrical angles and service-life configurations.
- Body diameter
- 22 mm
- Resistance
- 200 Ω–10 kΩ
- No-load life
- 1 million cycles
- Protection
- IP65
Application fit
- Industrial controlsCompare shaft mounting, resistance, electrical travel and duty cycle before selecting a rotary component.
- Actuators & valve feedbackSRS22 and RVR22 can be reviewed for rotary feedback integration. Confirm coupling, useful angle and the operating environment; they are not universal actuator replacements.
Application fit
- Industrial controlsCompare shaft mounting, resistance, electrical travel and duty cycle before selecting a rotary component.
- Actuators & valve feedbackSRS22 and RVR22 can be reviewed for rotary feedback integration. Confirm coupling, useful angle and the operating environment; they are not universal actuator replacements.
Technical data
Specifications
Electrical & response
| Standard resistance values | 200 Ω / 1 kΩ / 2 kΩ / 5 kΩ / 10 kΩ |
|---|---|
| Standard resistance tolerance | ±20% |
| Resistance taper | Linear |
| Linearity | ±3% in the detailed electrical table; other order codes available |
| End resistance | 20 Ω maximum |
| Noise (C.R.V.) | 200 mV |
| Power rating | 0.25 W at 40 °C, derated to 0 W at 85 °C |
| Maximum input voltage | 50 VDC |
| Electrical travel options | Multiple angle codes, including 300° mechanical / 280° electrical and 360° mechanical / 340° electrical. |
Mechanical, environment & options
| Mechanical angles | 180° / 300° / 312° / 360°, configuration dependent |
|---|---|
| No-load rotational life | 1,000,000 cycles in the detailed test table |
| Life-test acceptance | Total resistance change ≤ ±5% |
| Operating temperature | −30 to +85 °C |
| Storage temperature | −40 to +105 °C |
| Protection | IP65 |
| Operating torque | 60 gf·cm maximum |
| Shaft material options | Brass, SUS303 stainless steel or aluminium order codes. |
| Shaft & bushing options | Flat, slotted or round shafts; 6.35 mm / 10 mm bushings; 20 mm / 25 mm FMS options. |
| Linearity & life options | Linearity codes ±1.5%, ±2%, ±2.5% or ±3%. Life codes E 300,000 / S 1 million / P 3 million cycles. |
Resistance values are discrete selections. The reference electrical specification is ±3% linearity; tighter precision and different life ratings depend on the order code.
Options are not automatically interchangeable. Confirm the complete order code, drawing revision and performance requirements in the quotation.
Mechanical integration
Check the fit. Confirm the connection.
Connection review

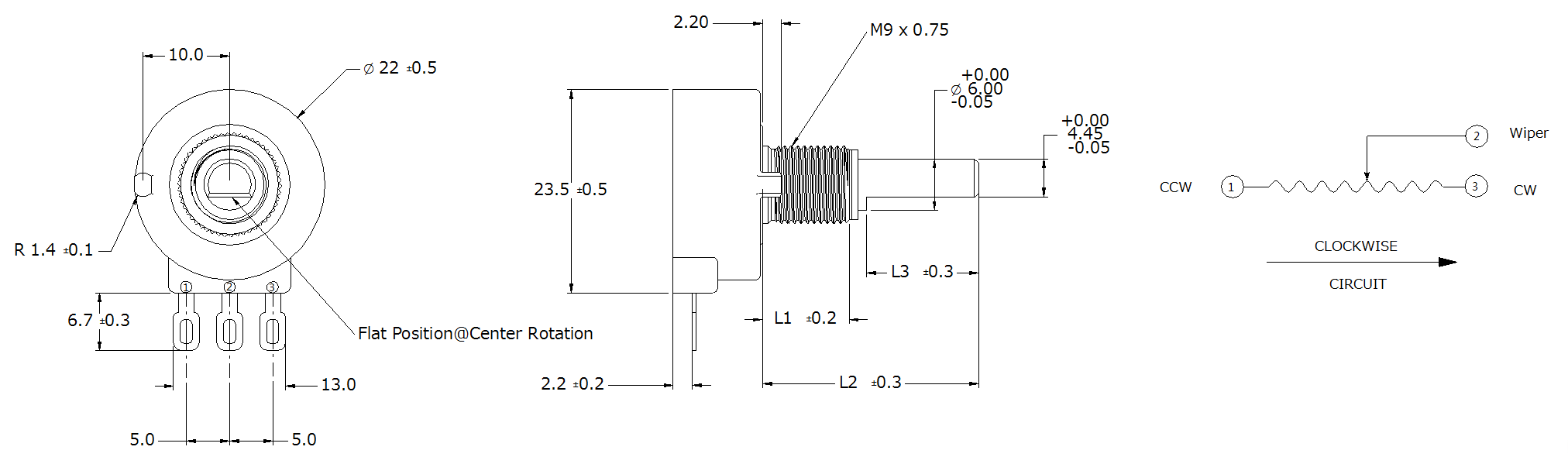

Use the supplied connection drawing for the ordered terminal arrangement. Confirm output direction and the effective electrical angle before wiring.
