Technical summary
Selected specifications, options and available reference drawings, compiled from the supplied MSV02 datasheet. Reference summary, 28 September 2026.

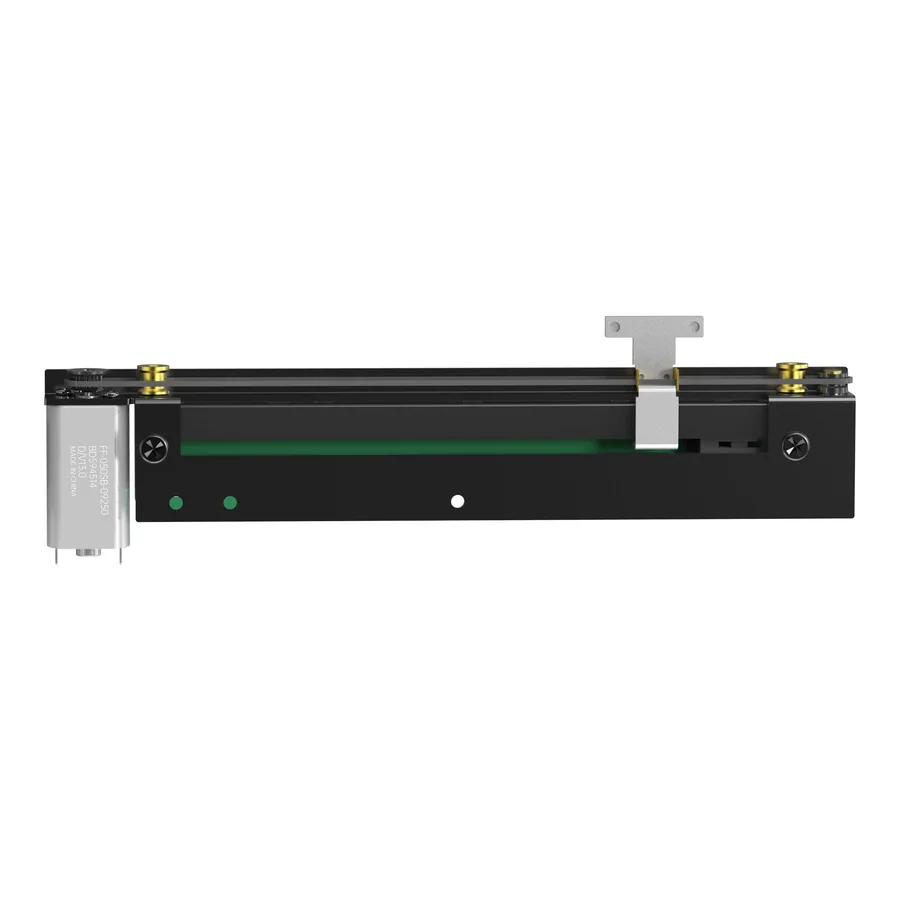

Download PDFProduct appearance and terminals vary by configuration.
COOKA / COMPONENT SERIES
COOKA / DOCUMENTED SERIES

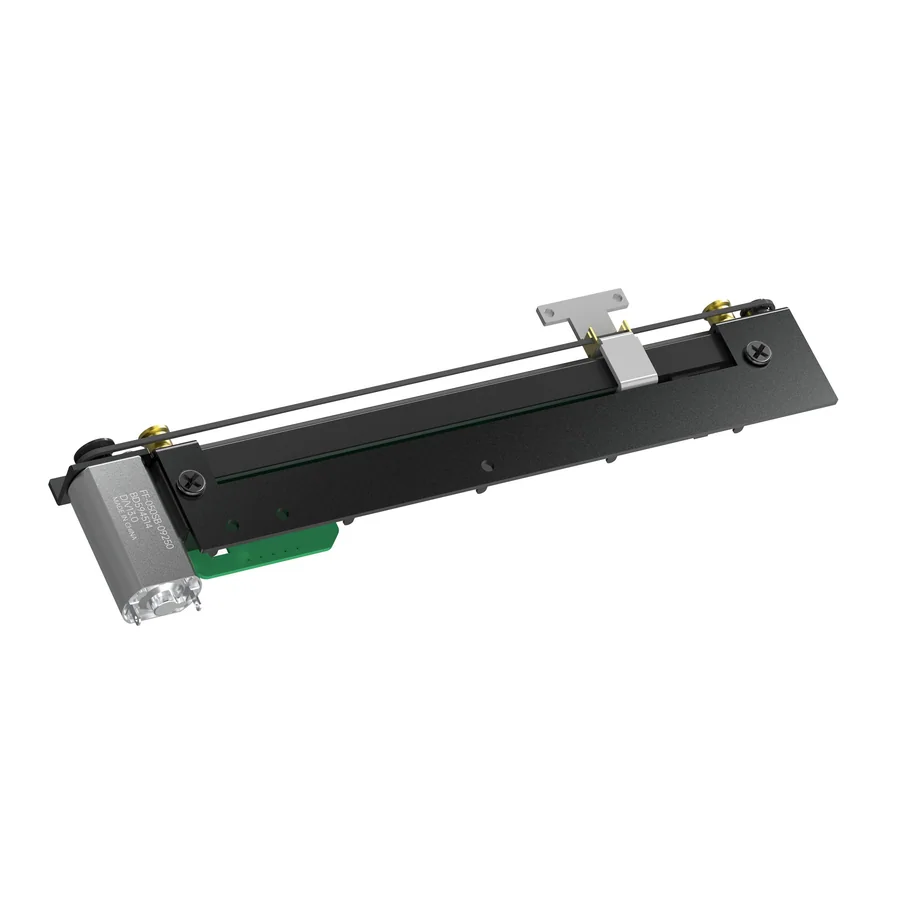

MSV02Motor-Actuated Slide Potentiometer
A motor-actuated fader with 60 mm or 100 mm travel for designs that combine manual control and automated positioning.
- Travel
- 60 / 100 mm
- Resistance
- 5 / 10 kΩ
- No-load life
- 1 million cycles
- Linearity
- ±2.5% max.
Application fit
- Audio & control surfacesCompare manual and motor-actuated faders for mixer and control-surface designs. Verify taper, travel, touch sensing and drive electronics for your project.
- Linear control interfacesThe slide series below are candidates for control panels and fader mechanisms. A machine requiring sealed long-stroke displacement sensing needs a separate review.
Application fit
- Audio & control surfacesCompare manual and motor-actuated faders for mixer and control-surface designs. Verify taper, travel, touch sensing and drive electronics for your project.
- Linear control interfacesThe slide series below are candidates for control panels and fader mechanisms. A machine requiring sealed long-stroke displacement sensing needs a separate review.
Technical data
Specifications
Electrical & response
| Standard resistance | 5 kΩ / 10 kΩ |
|---|---|
| Standard resistance tolerance | ±20% |
| Resistance taper | Linear |
| Linearity | ±2.5% maximum in the detailed electrical table |
| End resistance | 10 Ω maximum |
| Noise (C.R.V.) | 100 mV maximum |
| Element power rating | 0.25 W at 40 °C, derated to 0 W at 85 °C |
| Maximum element input voltage | 200 VDC; this is not a motor supply rating |
| Precision options | Standard ±2.5%; ordering options A ±1% or B ±1.5%. |
| Resistance tolerance options | A ±10% or B ±20%. Motor drive requirements need a separate configuration review. |
Mechanical, environment & options
| Mechanical travel | 60 mm / 100 mm |
|---|---|
| No-load operating life | 1,000,000 cycles |
| Operating temperature | −10 to +70 °C |
| Storage temperature | −20 to +85 °C |
| Travel options | 60 mm or 100 mm. |

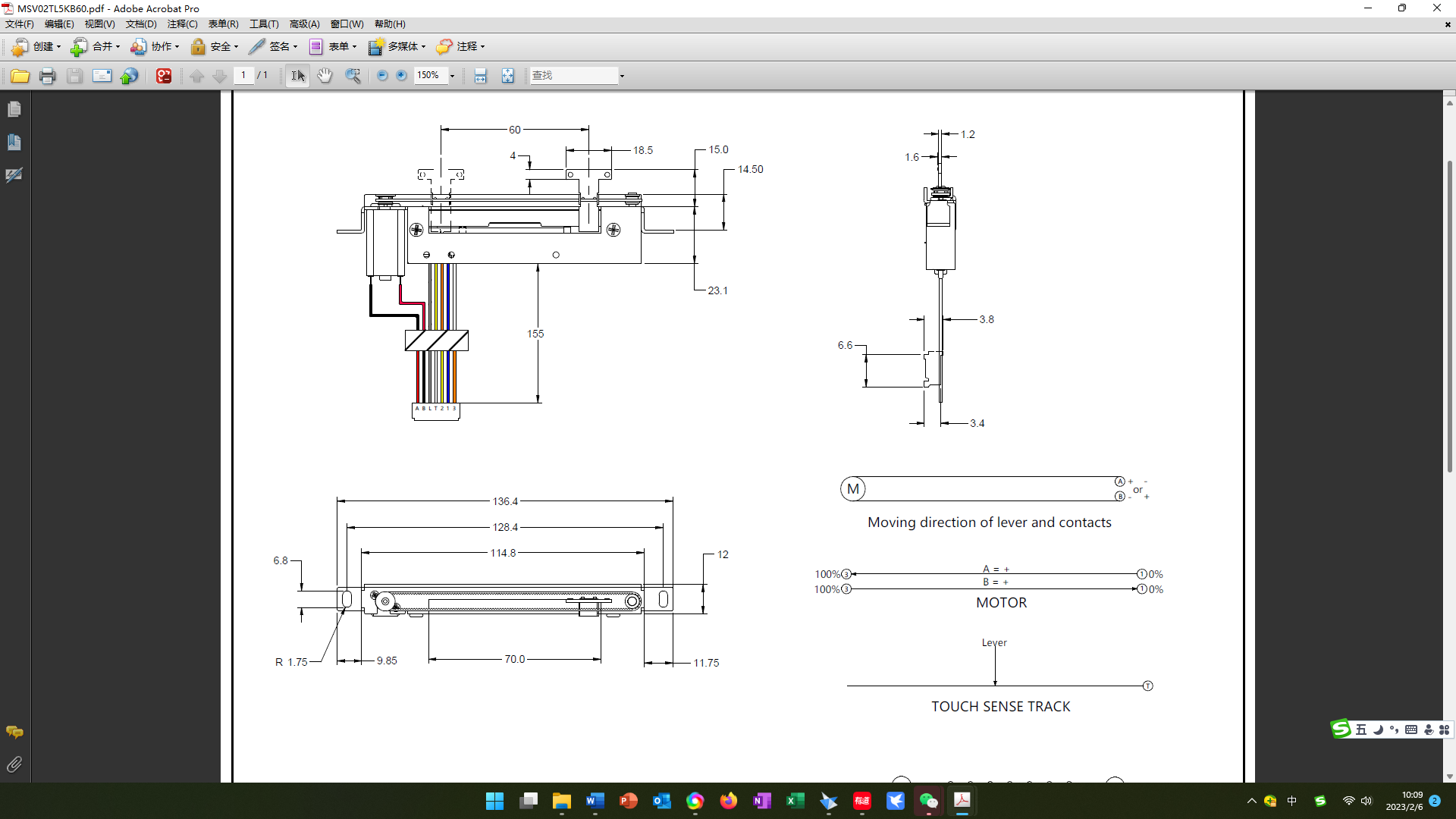

| Lever style options | T or TL construction, as shown in the source drawings. |
The reference specification is ±2.5% maximum linearity. Tighter precision is available by order code. Motor operating voltage must be confirmed separately.
Options are not automatically interchangeable. Confirm the complete order code, drawing revision and performance requirements in the quotation.
Mechanical integration
Check the fit. Confirm the connection.
Connection review
The T-type reference shows motor terminals, a resistive track and a touch-sense connection. Confirm the exact connector, pin assignment and motor supply before connection.
